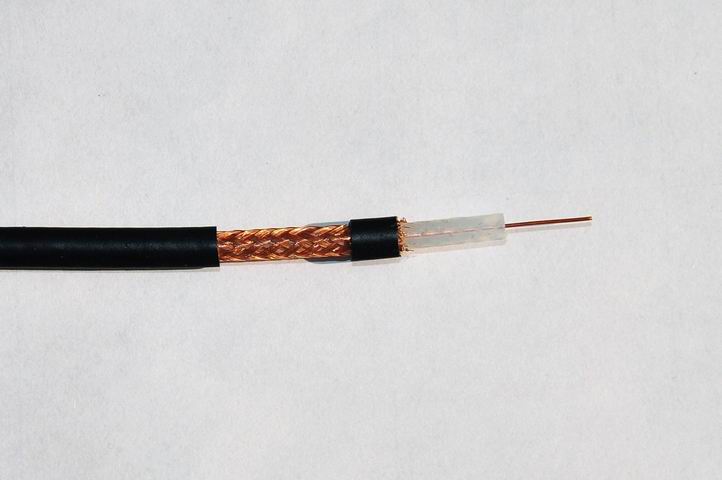

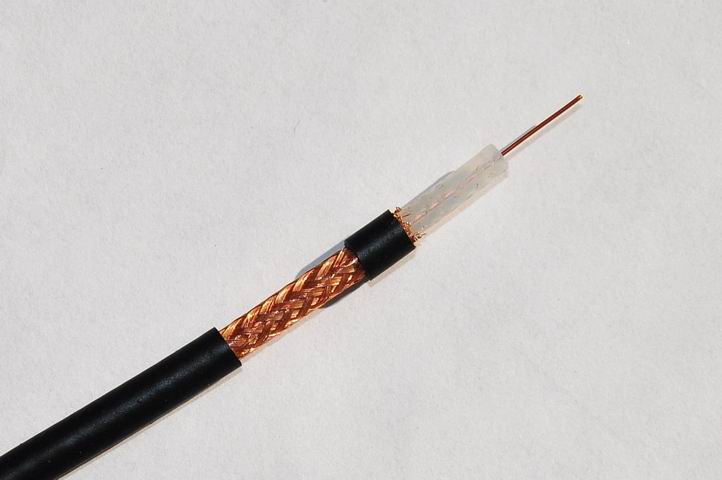

| Coaxial Cable RG223-Series | |||||||
| Physical Characteristics | |||||||
| Component | Inches | mm | |||||
| Inner Conductor Diameter | 0.035 | 0.90 | |||||
| Diameter Over Dielectric | 0.116 | 2.95 | |||||
| Diameter Over Outer Conductor | 0.147 | 3.75 | |||||
| Diameter Over Jacket | 0.208 | 5.30 | |||||
| Mechanical and Electrical Characteristics | |||||||
| Impedance | 50±2.0 Ohms | ||||||
| Capacitance | 98(pF/m) | ||||||
| Velocity of Propagation | 83% | ||||||
| Return Loss(dB) | VHF30-300MHz≥ | 35dB | |||||
| UHF300-900MHz≥ | 30dB | ||||||
| Screening Efficiency(dB) | VHF5-50MHz≥ | 85dB | |||||
| UHF200MHzUpward≥ | 90dB | ||||||
| Attenuation[@68°F. (20℃)] | |||||||
| Frequency(MHz) | Maximum(dB/100ft) | Maximum(dB/100m) | |||||
| 50 | 0.41 | 10.5 | |||||
| 230 | 0.92 | 23.6 | |||||
| 470 | 1.33 | 33.8 | |||||
| 860 | 1.73 | 43.9 | |||||
| 1000 | 2.13 | 54.2 | |||||
